Features:
- Standard Duplex LC connector, well connected with standard LC adaptor
- Broad temperature range and wide range of indoor and outdoor cables
- Easy Operation, reliable and cost-effective Installation
- IP67 protection, salt-mist proof, humidity proof,dust proof
- Available Single mode and Multimode
- Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
- Wall seal design,easy operation, strong and durable.
Application:
Telecommunication networks
Used in connecting commnication equipment
Used in FTTA
Used in bad outdoor condition
Specification
Cable Parameters
| Fiber Count | Cable Dimension
mm | Cable Weight
kg/km | Tensile
N | Crush
N/100mm | Min. Bend Radius
mm | Temperature |
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static |
| 2 or 4 | 7.0/5.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -40 ~ 85°C |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable; |
| CableModel | GYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1, |
| Fiber Count | 2, 4 Fibers |
| Fiber Type | SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
| Buffer Diameter | 900um±10um Material LSZH |
| Simplex cable Diameter | 2.0mm±0.1mm Material LSZH |
| Color | Orange or grey or customized |
| Filler Diameter | 2.0mm±0.1mm |
| Material LSZH | Color Black |
| Strength Member | Kevlar |
| Jacket Diameter | 5.0±0.1mm |
| material PE | Color Black |
1.Connector attenuation comply with “Grade B” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB)
2.All products factoy tested
3,Geometrical Characteristics comply with IEC 61755-3-1
4,All materials comply with IEC and ROHS
5,CPR test repots.
Recommend Products
Packaging and Shipment
Contact us
How to order:
1. You send us the order.
2. We send you corresponding Proforma invoice.
3. You can pay to our HK company account or paypal account or western union account and send us TT copy.
4. We make drawing and you confirm our drawing.
5. We make you sample to confirm ( if necessary).
6. We start mass production.
7. You advise shipping instruction and pay freight ( if you would like freight to be prepaid).
8. We provide AWB tracking number.
9. You receive cargo and give us feedback ( if any).
Trade Terms :
1. Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
2. Production lead time:5~ 7days against the deposit received.
3. Sample can be delivered in 3-5 days.
4. Shipping freight are quoted under your requests.
5. Shipping port: Shenzhen.
6. Discounts are offered based on order quantities.
7.MOQ:1PCS.
Our Service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized Antenna we can help you to design and put into product.
4.Offered for your unique design and some our current models.
5.Protection of your sales area,ideas of design and all your private information.

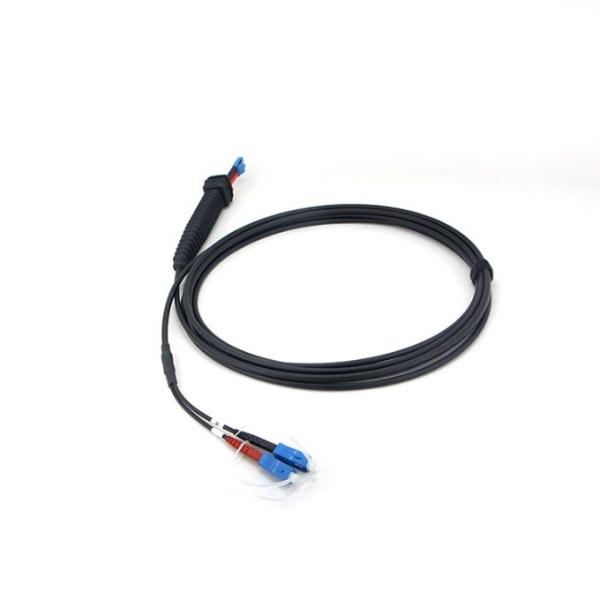

Look forward to your inquiry to our NSN Fiber Optic Patch Cable with Uniboot for NOKIA FTTA Base station, 5.0mm dia.
